Ecowitt HP2560-C TFT Full Colour Display Console & Power Supply

We normally deal direct with the main importer WeatherSpares, which is why we pass you onto them to complete your purchase. However we are aware that sometimes Amazon and Others run special deals, so for your convenience, we also check every day to see what is available.  The latest information is below, so just click on the relevant price:

Ecowitt HP2560-C TFT Full Colour Display Console

£134.93 at Aliexpress £135.15 at Amazon.co.uk £165.00 at Weatherspares.co.uk £190.00 at eBay

Amazon price updated: 30th October 2025 9:28 am

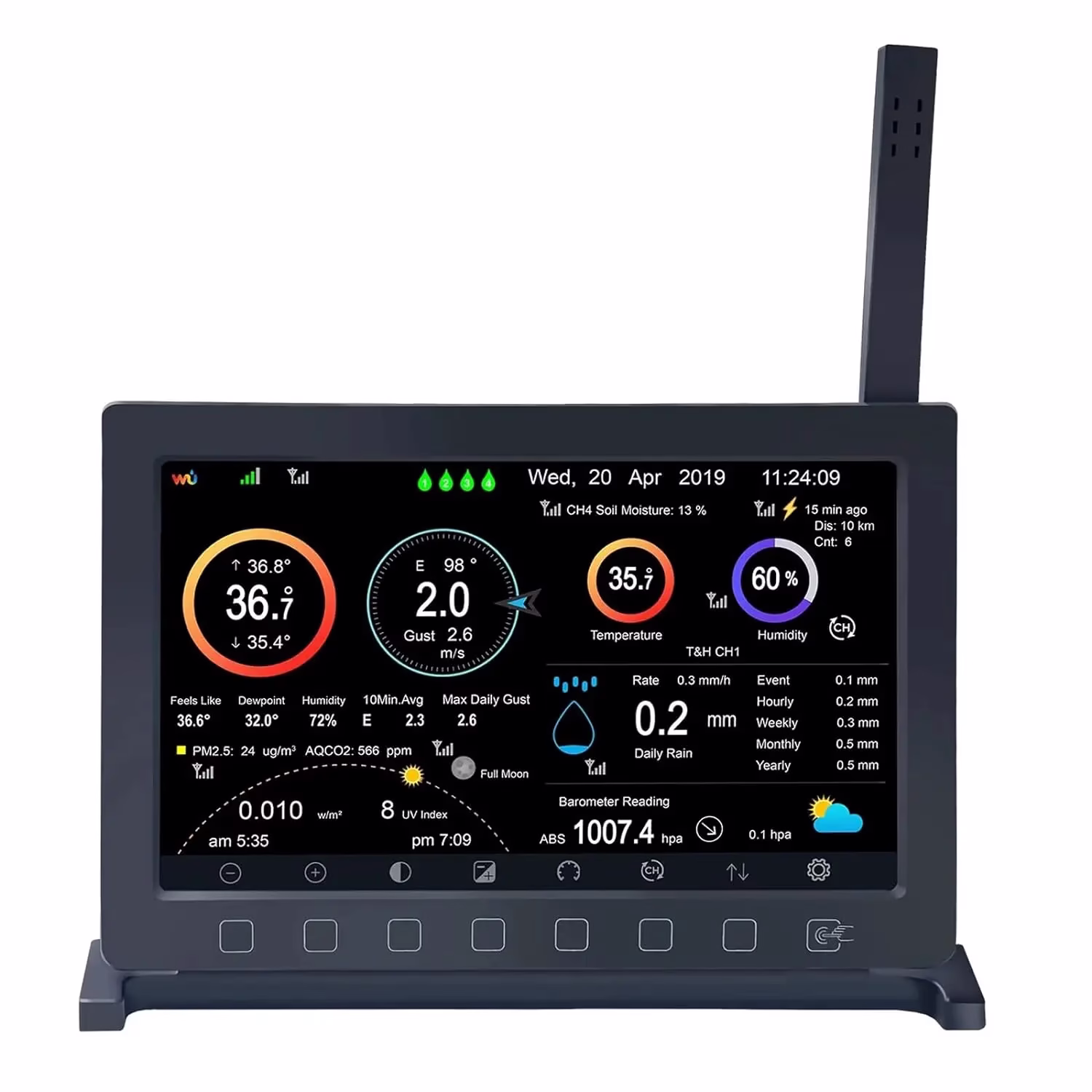

The 7″ high resolution TFT colour screen has a friendly & well-designed interface with two selectable backgrounds (dark or light). The console displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV. There is also a full colour weather forecast function and optional microSD memory card to store historical data with a 1GB card storing at least 10 years or data.

This indoor data, along with the outdoor sensor data is uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS, Google App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to The UK MetOffice WoW service, Weather Underground, WeatherCloud and your own web server.

Unlike some other stations, the EcowittHP2560 console can be used with a variety of sensors which currently include:

• 1 x 7-in-1 sensor array (WS69 or Wittboy) or a combination of:
  • 1 x WH40 Rain Sensor along with
  • 1 x WS68 Anemometer or 1 x WS80 Ultrasonic Anemometer

• 1 x WS90 Sonic Anemometer with Haptic Rain Gauge (Wittboy)
• 1 x WH57 lightning sensor
• 1 x WH45 PM2.5/PM10/CO2/temperature and humidity all-in-1 sensor
• Up to 8 x WH31 multi-channel temperature and humidity sensors or 8 WN30 temperature sensors
• Up to 8 x WH51 soil moisture sensors
• Up to 4 x WH41 / WH43 PM2.5 air quality sensors
• Up to 4 x WH55 water leak sensors
• Up to 8 x WN34 soil or water temperature sensors
• Up to 8 x WN35 leaf wetness sensors
• Future sensors are also under development

All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.

Note this item requires existing 868MHz Ecowitt sensors to display data.

Included in the Box

The EcowittHP2560-C console includes the following items:

• HP2560-C WiFi 7″ full colour TFT console
• Clip on stand for desk use or can be mounted on a wall
• UK power adapter (EU available by request)
• Instruction manual via electronic delivery (100 comprehensive pages)

Technical Details

TheHP2560-C consists of:

HP2560-C 7″ Full Colour TFT Screen

• Built in sensors to display
  • Indoor Temperature
  • Indoor Humidity
  • Atmospheric pressure sensor
• Configure WiFi via console
• Configure additional sensors via console
• Publishes sensor data to Internet based weather services including
  • Ecowitt weather server: ecowitt.net.
  • WeatherUnderground.com
  • WeatherCloud
  • MetOffice WoW
  • Only sensor data supported by each specific service will be uploaded.
• View historical records from your weather station with optional microSD card
• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• 868MHz UK and European frequency

A copy of the HP2560 TFT console instructions can be downloaded by clicking here.
