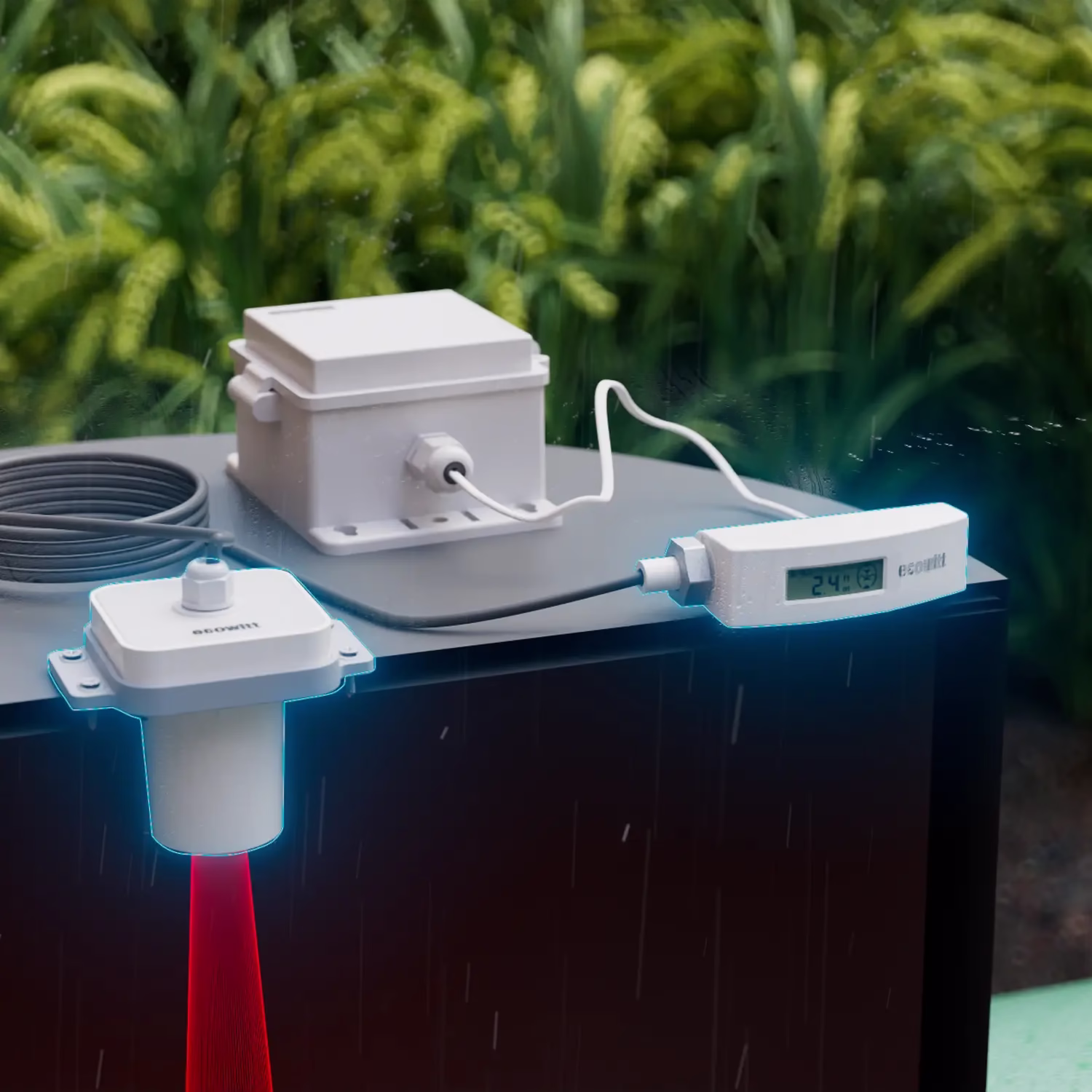

Ecowitt LDS01 Snow Depth Sensor also for River or Liquid Level

We normally deal direct with the main importer Weather Spares, which is why we pass you onto them to complete your purchase. However we are aware that sometimes Amazon and Others run special deals, so for your convenience, we also check every day to see what is available.

The latest information is below, so just click on the relevant price:

Best prices we can find right now

£91.38 at Aliexpress £99.00 at Weatherspares.co.uk

Add the Snow Depth and Liquid Level sensor to the Ecowitt WiFi gateway or console to include these readings in your data. Upload data to the Ecowitt network to view a history of level data or view live on the sensors LCD screen.

Transmits an average reading every 60 seconds, unless a rapid change in level is detected (such as rising river level) then this increases to every 10 seconds.

The LDS01 sensor also includes a heater to keep the sensor free of moisture and condensation so as to improve accuracy and sensor longevity.

We will update our sensor matrix with details on which weather products support the LDS01 level sensor in the coming weeks, click here to view the latest Ecowitt sensor matrix.

Features

• Measures depth of liquid or height of snow
• 1 meter lead from transmitter to sensor head
• LCD screen for direct readings or via Ecowitt App / Website
• Includes secondary battery for heater power
• Configure for use with the GW1200, GW2000 or GW3000 WIFI gateway or WS6210 4G gateway
• 868MHz UK / European frequency
• Connect up to 4 LDS01 sensors per gateway
• Upload data to the Ecowitt weather server to view history graphs and download the data from the website in Excel

Technical information for the LDS01 Snow / Liquid Sensor.

• Cable Length: 1.5m
• Laser measurement (darkness): 0m to 4m
• Laser measurement (in light): 0m to 3.5m
• Laser measurement accuracy: ±2% per m
• Laser measurement resolution: 0.01m
• Laser Beam Angle: 5°
• Laser Operating Temperature Range: -20℃-60℃
• Data transmission interval when water level fluctuates: 10 seconds
• Data reporting Interval: About 1 minute
• RF Connection Frequency: 868MHz
• RF Wireless Range (in open areas): Over 100 meters (in open areas)
• LCD Operating Temperature Range: -10℃-50℃
• HTN-LCD Screen
• Dimensions of Probe: 87*64*87mm
• Dimensions of transmitter: 102*25*49mm
• Power: 8 x AA batteries (not included)
